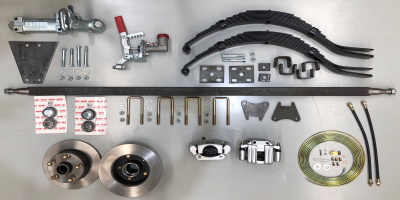

D.I.Y 1.4 Tonne Hydraulic Disc Brake Single Axle Kit

(customer assembles / packs bearings / weld flanges / flares brake lines)

Kit Contains

1 ea - 1.4T 45mm Square Axle
(customer to specify length)
2 ea - 9 Leaf 45mm wide Eye/Slipper Springs
1 ea - Single Axle E/S Spring Fitting Kit
suit 45mm Square Axle
2 ea - 1/2" Hubdiscs Complete
AL-KO SL Bearings
(customer to specify pattern)
1 pr - AL-KO Dacromet Hydraulic Dics Brake Assemblies (1 LH / 1 RH)
2 ea - Hydraulic Disc Brake Flange Kit
suit 45mm Sq Axle
1 ea - AL-KO 2.0T Hydraulic Override Coupling with 3/4" Master Cylinder
1 ea - Hydraulic Disc Brake Fitting Kit
1 ea - 6 Mtr Coil 3/16" Bundy Tube
1 ea - 4 hole Coupling Plate
4 ea - 1/2" UNF High Tensile Bolts 2 x 3-1/2"
and 2 x 4" Nyloc Nuts / Washers
1 ea - Assembly Instructions

PRICE
Kit as detailed to suit Holden or Ford pattern wheels
(13"/14"/15" wheels)
$840.00
 (inc GST)
Kit as detailed suit L/C 6 Stud Wheels $1000.00
 (inc GST)
OPTIONS ADD
Overlay Axles
 (drops ride height 45mm)
$120.00
Drop Axle 2 1/2" or 4" Drop $150.00
60mm x 7 Leaf Eye and Eye Springs (in lieu E/S) $80.00
Eye and Eye Offroad Spring Kit 60mm x 7 leaf - Rebound Springs, Greaser Bolts and 5/8" dia U-Bolts (in lieu of E/Slipper) $200.00
Axle Assembly
(if required)
$160.00
AL-KO Japanese Bearings in Lieu std $20.00
Weld brake flanges to axle only $90.00

All Brake Lines / Hose and Fittings supplied but not fitted to axles as recommended fittment is flexible hose from calipers to trailer frame.

Kit Weight approx 100kg
